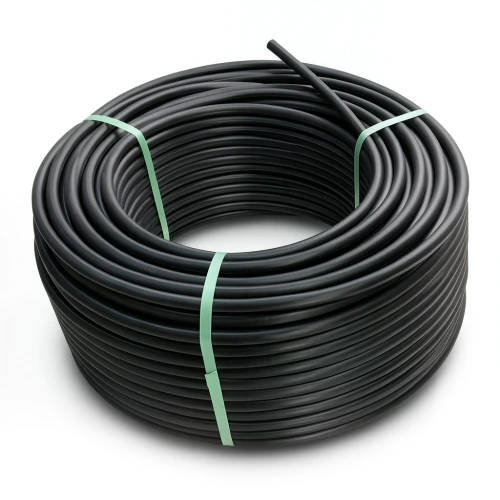

HDPE Plastic Coil Pipe PN 16 Bar PE 80 OD 140 mm SDR 9 Black

This HDPE coil pipe is manufactured from high-density polyethylene (PE 80), offering exceptional strength and longevity for demanding water and construction applications. With a pressure rating of PN 16 bar and an outer diameter of 140 mm, it is engineered to perform reliably under the harsh climatic conditions of Bahrain, ensuring a long service life with minimal maintenance.

The pipe features a Standard Dimension Ratio (SDR) of 9, which provides a wall thickness of 15.7 mm, delivering excellent resistance to internal pressure and external impact. Its black color offers UV protection, making it suitable for outdoor installations across Manama, Muharraq, and Riffa. The material's chemical resistance and smooth inner surface reduce friction and prevent scaling, ensuring efficient water flow.

Key Features

• PE 80 high-density polyethylene material
• PN 16 bar pressure rating
• Outer diameter: 140 mm
• SDR 9 with 15.7 mm wall thickness
• Minimum Required Strength (MRS): 8 MPa
• Design stress: 6.4 MPa with safety factor C=1.25
• Available in coils of 100 and 200 meters

Ideal for water supply lines, irrigation systems, and construction projects in Bahrain, this HDPE pipe meets the rigorous standards expected by contractors and engineers. Its flexibility and coil form simplify transportation and installation, reducing labor costs and time on site.
