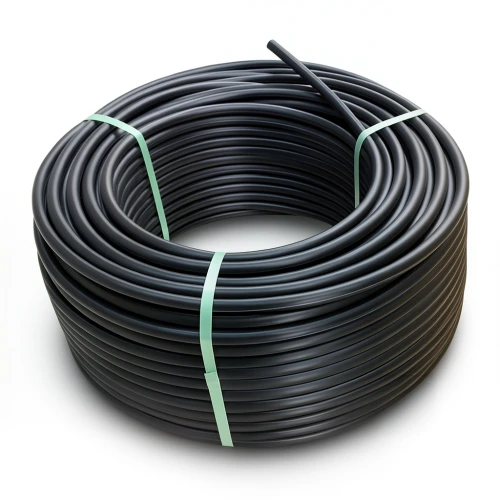

HDPE Plastic Coil Pipe PN 16 Bar PE 80 OD 20 mm SDR 9 Black

This HDPE coil pipe is engineered for reliable performance in demanding water distribution and infrastructure applications. Manufactured from high-density polyethylene (PE 80), it provides outstanding resistance to corrosion, chemicals, and weather extremes, making it a trusted choice for the hot and humid climate of Bahrain.

With a pressure rating of PN 16 bar and a standard dimension ratio (SDR) of 9, this pipe delivers consistent strength and durability. The 20 mm outer diameter is well-suited for residential, commercial, and municipal water lines, as well as for agricultural and industrial uses across the Kingdom.

Key Features

• Material: High-density polyethylene (PE 80) for long-lasting performance
• Pressure rating: 16 bar (PN 16) for high-pressure applications
• Outer diameter: 20 mm with a wall thickness of 2.3 mm
• SDR 9 ensures a robust wall-to-diameter ratio
• Minimum Required Strength (MRS) of 8 MPa and design stress of 6.4 MPa
• Design safety factor: C = 1.25
• Black color for UV resistance and durability
• Available in coils of 100 meters and 200 meters for easy handling and installation

Ideal for water supply networks, irrigation systems, and industrial piping in Bahrain, this HDPE pipe offers excellent flow characteristics and a long service life with minimal maintenance.
