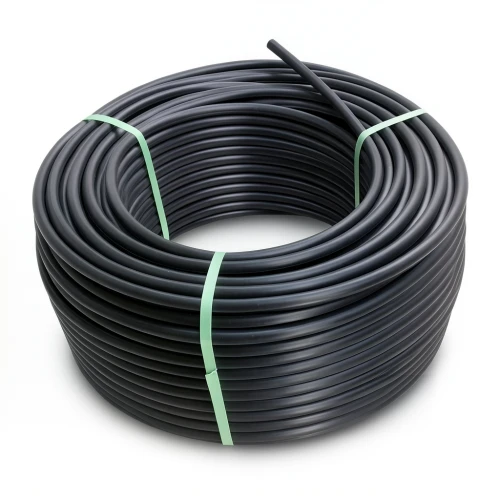

HDPE Plastic Coil Pipe PN 6 Bar PE100 140 mm SDR 26 Black

This HDPE coil pipe is engineered from premium PE100 resin, delivering exceptional strength and longevity for demanding water infrastructure projects across Bahrain. With a 140 mm outside diameter and a standard dimensional ratio (SDR) of 26, it offers a balanced combination of wall thickness (5.4 mm) and pressure capacity, rated at PN 6 bar. The pipe series (S) of 12.5 ensures consistent performance under typical operating conditions.

Manufactured to withstand corrosive environments and high stress, this pipe is an excellent choice for potable water distribution, irrigation networks, and industrial fluid handling in the Kingdom. Its black color provides UV resistance, making it suitable for above-ground installations under Bahrain's intense sun, while the coil format simplifies handling and reduces the need for joints.

Key Features

• PE100 material grade with minimum required strength (MRS) of 10 MPa
• Design stress (σs) of 8 MPa and safety factor C=1.25 for reliable operation
• Outside diameter: 140 mm; wall thickness: 5.4 mm
• Pressure rating: PN 6 bar; SDR 26; pipe series S 12.5
• Black color for UV protection and extended service life

Ideal for projects in Manama, Muharraq, and Riffa, this pipe meets the rigorous demands of both new constructions and maintenance upgrades, ensuring efficient water conveyance with minimal leakage.
