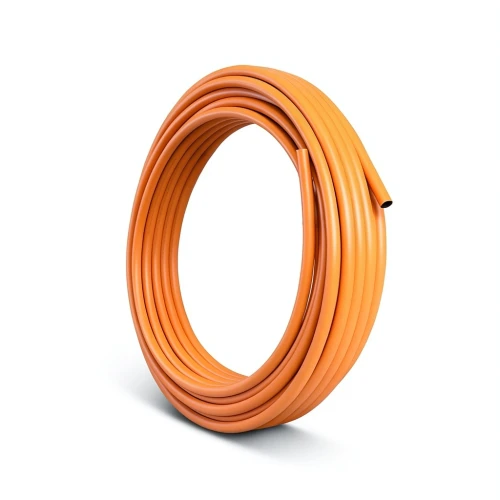

HDPE Coil Pipe PN 6 Bar PE 100 OD 90 mm Thickness 5.2 mm Orange

Description

High-density polyethylene (PE 100) coil pipe rated for 6 bar pressure, with a 90 mm outer diameter and 5.2 mm wall thickness, ideal for gas supply and construction projects in Kuwait.

Product Description

This HDPE coil pipe, manufactured by Almona Factory, is crafted from premium PE 100 high-density polyethylene, delivering exceptional strength and long-term durability. Rated for 6 bar pressure (PN 6) with a 90 mm outside diameter and 5.2 mm wall thickness, this orange-colored pipe is engineered for reliable performance in gas distribution and construction applications.

Key Features

Material: PE 100 (high-density polyethylene)
Pressure rating: 6 bar (PN 6)
Outside diameter: 90 mm
Wall thickness: 5.2 mm
Standard dimension ratio (SDR): 17.6
Weight: 1.40 kg/m
Minimum Required Strength (MRS): 10 MPa
Design stress (σs): 5 MPa
Design safety factor: C = 2
Color: Orange

Applications in Kuwait

Built to meet the demands of Kuwait's infrastructure and construction sector, this pipe is well-suited for gas supply networks, underground utility installations, and civil engineering projects in Kuwait City, Hawalli, and Al Ahmadi. Its flexibility and coil form simplify handling and installation, while its PE 100 grade ensures resistance to pressure surges and environmental stress cracking—critical for Kuwait's hot climate and sandy soil conditions.

Compliant with ISO 4437 standards, this pipe offers dependable performance in building materials and construction supplies, providing a cost-effective solution for contractors and developers across Kuwait.
