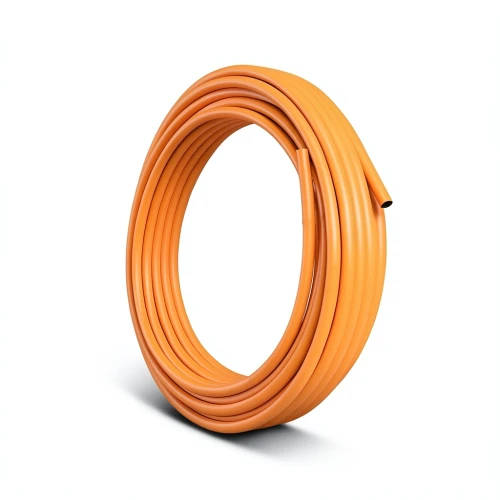

HDPE Coil Pipe Pressure 10 Bar PE 100, 140 mm OD, 12.7 mm Thickness, Orange

Description

High-density polyethylene coil pipe rated for 10 bar pressure, with a 140 mm outer diameter and 12.7 mm wall thickness, in orange — engineered for durable gas supply networks in Kuwait.

Product Description

This HDPE coil pipe, manufactured from premium PE 100 grade high-density polyethylene, delivers robust performance for gas supply and demanding construction applications. With a pressure rating of 10 bar, an outside diameter of 140 mm, and a wall thickness of 12.7 mm, it is built to withstand the challenging conditions of the Kuwaiti environment, including intense heat, humidity, and corrosive soil.

Its high-density molecular structure provides exceptional strength, impact resistance, and long-term durability. The pipe is resistant to corrosion, UV radiation, and temperature extremes, ensuring reliable service in both above-ground and buried installations across Kuwait City, Hawalli, and Al Ahmadi.

Key Features

Pressure rating: 10 bar
Outside diameter: 140 mm
Wall thickness: 12.7 mm
Material: PE 100 (High-Density Polyethylene)
Standard Dimensional Ratio (SDR): 11
Minimum Required Strength (MRS): 10 MPa
Design stress: 5 MPa, with safety factor C=2
Color: Orange for high visibility
Weight: 5.15 kg/m

Applications in Kuwait

Ideal for gas distribution networks, industrial piping, and infrastructure projects in Kuwait. Its durability and weather resistance make it suitable for both permanent installations and temporary worksites, providing a dependable solution for contractors and municipalities.
