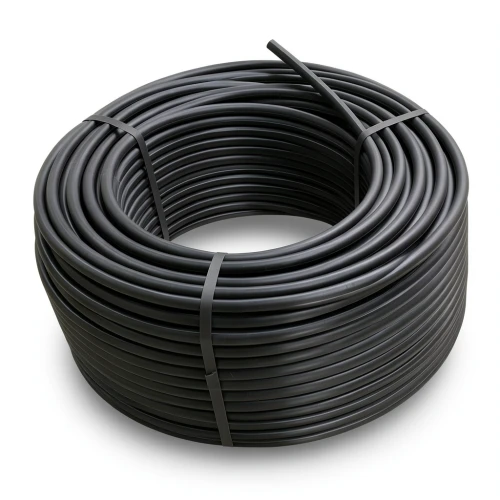

HDPE Pipe Coils Pressure 20 Bar PE100 Size 75 mm SDR 9 Black

Description

HDPE pipe coils with a 75 mm outer diameter, SDR 9, and a 20 bar pressure rating, crafted from PE100 for reliable water transport in Kuwaiti construction.

Product Description

These HDPE pipe coils are engineered for robust water transportation networks, making them a dependable choice for construction and infrastructure projects across Kuwait. Manufactured from high-density polyethylene (PE100), they deliver superior strength, long-term durability, and excellent resistance to corrosion and chemical degradation—ideal for the demanding conditions of the region.

With a 75 mm outside diameter and a standard dimensional ratio (SDR) of 9, these pipes offer a pressure rating of 20 bar, ensuring reliable performance in high-pressure applications such as water supply lines, irrigation systems, and industrial fluid handling. The black color provides UV resistance for outdoor storage and use, while the coil format simplifies handling and installation on site.

Key Features

Outside diameter: 75 mm
Wall thickness: 8.4 mm
Standard Dimensional Ratio (SDR): 9
Pressure rating: 20 bar
Pipe Series (S): 4
Material grade: PE100
Color: Black
Minimum Required Strength (MRS): 10 MPa
Design stress (σs): 8 MPa
Design safety factor: C=1.25

These pipes are suitable for a wide range of applications in Kuwait, including potable water distribution, sewage and drainage systems, and agricultural irrigation—supporting both urban development in Kuwait City and industrial projects in Hawalli and Al Ahmadi.
