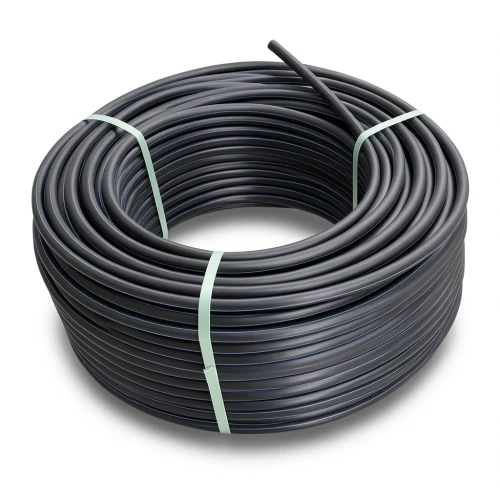

HDPE Plastic Coil Pipe Nominal Pressure 8 Bar PE 80 OD 40 mm SDR 17 Black

Description

Durable HDPE PE 80 coil pipe rated for 8 bar pressure with a 40 mm outer diameter, ideal for water supply systems in Kuwait.

Product Description

This HDPE coil pipe is engineered for reliable water transportation in Kuwait's demanding environment. Manufactured from high-density polyethylene (PE 80) and compliant with ISO 4427-2, it delivers exceptional strength, corrosion resistance, and long-term durability. The pipe is supplied in convenient coils, making installation straightforward for both new projects and maintenance work across Kuwait City, Hawalli, and Al Ahmadi.

Key Features

Outside diameter: 40 mm
Standard dimension ratio (SDR): 17
Material grade: PE 80
Nominal pressure: 8 bar
Wall thickness: 2.4 mm
Minimum Required Strength (MRS): 8 MPa
Design stress (σs): 6.4 MPa
Design safety factor: C=1.25
Color: Black
Available in coils of 100 and 200 meters

Applications in Kuwait

Ideal for potable water distribution, irrigation systems, and industrial piping in Kuwait's harsh climate. The pipe's resistance to heat and pressure ensures dependable performance in both residential and commercial projects, from Kuwait City to Al Ahmadi.
