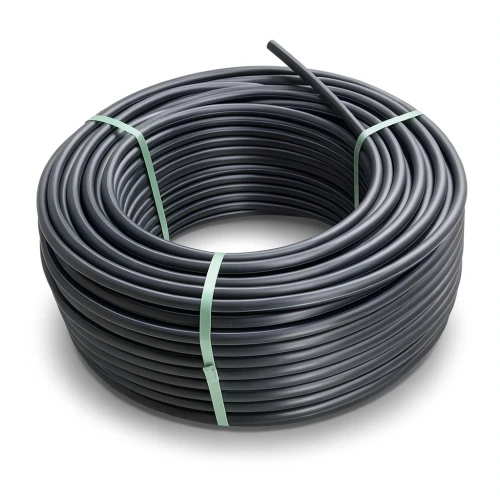

HDPE Plastic Coil Pipe PN 10 Bar PE 80 OD 140 mm SDR 13.6 Black

This HDPE coil pipe is engineered for demanding water supply and infrastructure applications across Kuwait. Manufactured from high-density polyethylene (PE 80), it offers excellent corrosion resistance and long-term durability, even in harsh desert climates and aggressive soil conditions common in areas like Kuwait City and Al Ahmadi.

The pipe is rated for a working pressure of PN 10 Bar and features a standard dimension ratio (SDR) of 13.6, providing a robust balance of strength and flexibility. Its 140 mm outer diameter makes it suitable for a wide range of municipal, commercial, and industrial piping systems. Available in convenient coil lengths of 100 and 200 meters, it simplifies transportation and installation, reducing the need for joints and fittings.

Key Features

• Pressure rating: PN 10 Bar
• Material grade: PE 80 (high-density polyethylene)
• Outer diameter (OD): 140 mm
• Standard dimension ratio (SDR): 13.6
• Wall thickness: 10.3 mm
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C = 1.25
• Color: Black
• Length: Coils of 100 m and 200 m

Whether for potable water transmission, irrigation networks, or construction site supply lines, this HDPE pipe meets the rigorous standards expected by Kuwaiti engineers and contractors. Its lightweight nature and coil format make it an efficient choice for projects in Hawalli and beyond.
