HDPE Plastic Coil Pipe PN 20 Bar PE 100 25 mm SDR 9 Black

Description

HDPE coil pipe with 25 mm outer diameter, PN 20 bar rating, PE100 grade, and SDR 9, in black—ideal for durable water supply systems in Kuwait.

Product Description

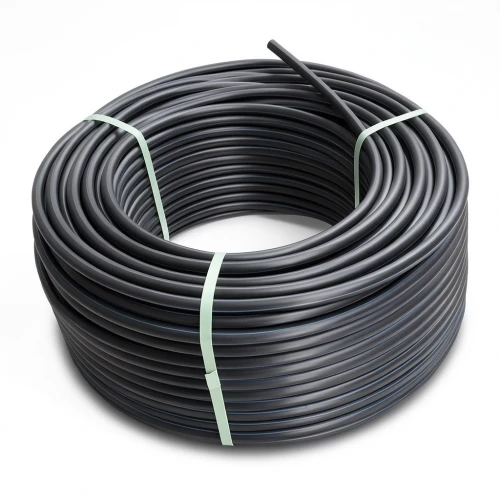

This HDPE coil pipe is manufactured from high-density polyethylene (PE100), delivering superior strength and long-term durability for water transportation systems. With a 25 mm outside diameter, a pressure rating of PN 20 bar, and a Standard Dimensional Ratio (SDR) of 9, it is engineered to handle demanding conditions while resisting corrosion and abrasion.

In Kuwait's harsh climate, from the coastal humidity of Kuwait City to the arid heat of Al Ahmadi, this pipe ensures reliable performance in both potable water distribution and irrigation networks. Its flexible coil format simplifies handling and installation, reducing the need for joints and fittings—a significant advantage for projects across Hawalli and beyond.

Key Features

Outside diameter: 25 mm
Wall thickness: 3.0 mm
SDR 9 (Standard Dimensional Ratio)
Pressure rating: 20 bar (PN 20)
Pipe series (S): 4
Material grade: PE100
Color: Black
Minimum Required Strength (MRS): 10 MPa
Design stress (σs): 8 MPa
Design safety factor: C=1.25

Ideal for water transportation networks, this HDPE pipe offers excellent corrosion resistance, a smooth inner surface for efficient flow, and a long service life—making it a cost-effective choice for construction and infrastructure projects throughout Kuwait.
