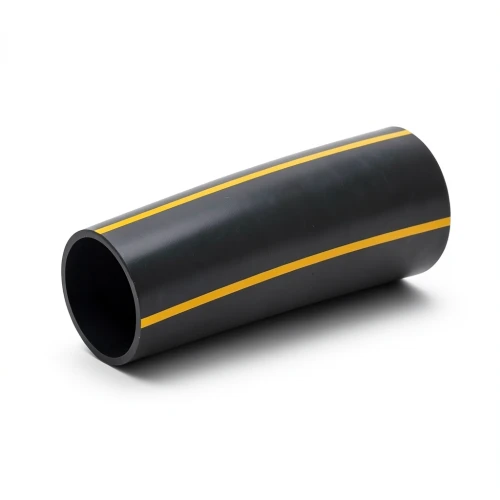

HDPE Polyethylene Pipe 8 Bar Pressure PE 80 Size 400 mm OD Thickness 36.4 mm Black Yellow Stripes

This HDPE pipe is engineered for the demanding requirements of gas supply networks in Kuwait. Manufactured from high-density polyethylene (PE 80), it delivers exceptional strength, long-term durability, and superior resistance to corrosion and chemical attack, ensuring reliable service in the harsh desert climate and aggressive soil conditions common across Kuwait City, Hawalli, and Al Ahmadi.

With an outside diameter of 400 mm and a wall thickness of 36.4 mm, this pipe offers a standard dimensional ratio (SDR) of 11, providing a robust pressure rating of 8 bar. The material's minimum required strength (MRS) of 8 MPa and design stress of 4 MPa, with a safety factor of 2, guarantee safe and consistent performance over decades of operation.

Ideal for gas distribution projects, this pipe is also suitable for water and industrial applications where high pressure and durability are critical. Its black color with yellow stripes ensures easy identification in utility networks.

Key Features

• Outside diameter: 400 mm
• Wall thickness: 36.4 mm
• Working pressure: 8 bar
• Material grade: PE 80
• Standard dimensional ratio (SDR): 11
• Material weight: 41.63 kg/m
• Minimum required strength: 8 MPa
• Design stress: 4 MPa
• Design safety factor: C=2
• Color: Black with yellow stripes
