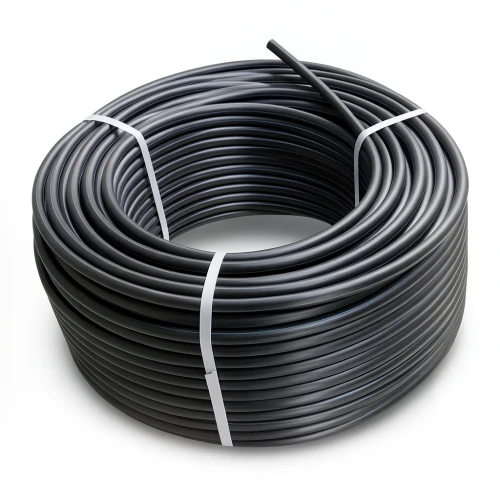

HDPE Coil Pipe Nominal Pressure 12.5 Bar PE 100 OD 160 mm SDR 13.6 Black

Description

This HDPE coil pipe, rated at 12.5 bar and made from PE 100, offers a 160 mm outside diameter with SDR 13.6, ensuring reliable water supply in Omani construction projects.

Product Description

This HDPE coil pipe is engineered for high-performance water transportation in demanding environments. Manufactured from premium PE 100 high-density polyethylene, it delivers exceptional strength, durability, and corrosion resistance, making it ideal for the harsh climatic conditions of Oman, from the coastal humidity of Muscat to the arid heat of Salalah and Sohar.

With a nominal pressure of 12.5 bar and an outside diameter of 160 mm (SDR 13.6), this pipe is suitable for a wide range of applications, including potable water distribution, irrigation systems, and industrial fluid transfer. Its flexibility and coil format simplify handling and installation, reducing the need for fittings and joints, which is particularly beneficial for long-distance pipelines in Omani infrastructure projects.

Key Features

Nominal pressure: 12.5 bar
Material grade: PE 100 (high-density polyethylene)
Outside diameter (OD): 160 mm
Standard Dimensional Ratio (SDR): 13.6
Wall thickness: 11.8 mm
Pipe series (S): 6.3
Minimum Required Strength (MRS): 10 MPa
Design stress (σs): 8 MPa
Design safety factor: C=1.25
Color: Black (UV-resistant for outdoor use)

Compliant with international standards, this pipe ensures long-lasting performance under pressure, making it a dependable choice for contractors and engineers across Oman.
