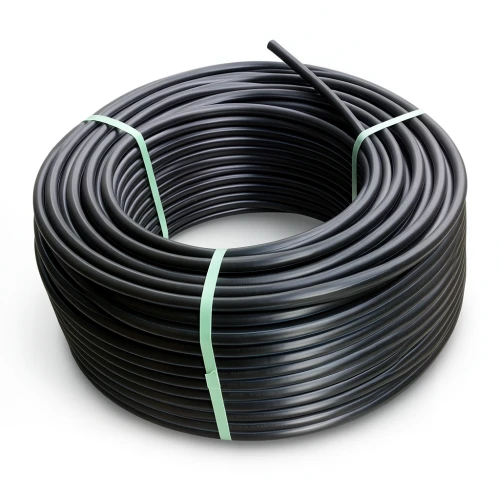

HDPE Coil Pipe Nominal Pressure 12.5 Bar PE 80 OD 110 mm SDR 11 Black

Description

This HDPE coil pipe, rated at 12.5 bar and made from PE 80, offers a durable and flexible solution for water supply and infrastructure projects across Oman. With a 110 mm outer diameter and SDR 11, it ensures reliable performance in demanding conditions.

Product Description

This HDPE coil pipe is a premium choice for modern water transportation systems, delivering exceptional durability and long-term reliability. Manufactured from high-density polyethylene (PE 80), it combines robust strength with excellent flexibility, making it ideal for a wide range of infrastructure projects across the Sultanate of Oman.

Key Features

Nominal pressure: 12.5 bar
Outer diameter: 110 mm
Standard Dimension Ratio (SDR): 11
Material grade: PE 80
Wall thickness: 10 mm
Minimum Required Strength (MRS): 8 MPa
Design stress (σs): 6.4 MPa
Design safety factor: C=1.25
Color: Black
Available in coil lengths of 100 and 200 meters

Applications in Oman

This pipe is well-suited for water supply networks, irrigation systems, and industrial infrastructure in Omani cities such as Muscat, Salalah, and Sohar. Its UV resistance and chemical corrosion protection make it perfect for harsh desert climates and coastal environments.
