HDPE Coil Pipe Nominal Pressure 12.5 Bar PE 80 Outside Diameter 50 mm SDR 11 Black

Description

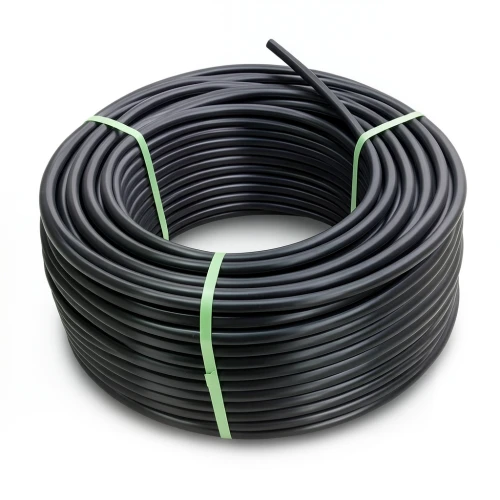

This HDPE Coil Pipe, made from PE 80 high-density polyethylene, offers a nominal pressure of 12.5 bar and a 50 mm outside diameter, ideal for robust water supply systems in Oman.

Product Description

Engineered for reliability, this HDPE coil pipe is manufactured from premium PE 80 high-density polyethylene, ensuring exceptional durability and resistance to corrosion and chemicals. With a nominal pressure rating of 12.5 bar and an outside diameter of 50 mm, it is perfectly suited for demanding water transportation and construction applications across Oman, from Muscat to Salalah and Sohar.

The pipe features a standard dimension ratio (SDR) of 11, providing an optimal balance between strength and flexibility. Its wall thickness of 4.6 mm, combined with a minimum required strength (MRS) of 8 MPa and a design stress of 6.4 MPa, guarantees long-term performance under pressure. The design safety factor of C = 1.25 ensures added reliability, making it a trusted choice for infrastructure projects in Oman's challenging climate.

Key Features

Material: PE 80 high-density polyethylene
Nominal pressure: 12.5 bar
Outside diameter: 50 mm
SDR 11 standard dimension ratio
Wall thickness: 4.6 mm
Minimum required strength: 8 MPa
Design stress: 6.4 MPa
Design safety factor: C = 1.25
Color: Black
Available in coils of 100 and 200 meters

Ideal for potable water supply, irrigation, and industrial piping, this HDPE coil pipe is a versatile solution for contractors and municipalities throughout Oman. Its flexibility simplifies installation in rugged terrains, while its corrosion resistance ensures a long service life, even in saline soil conditions common in coastal areas.
