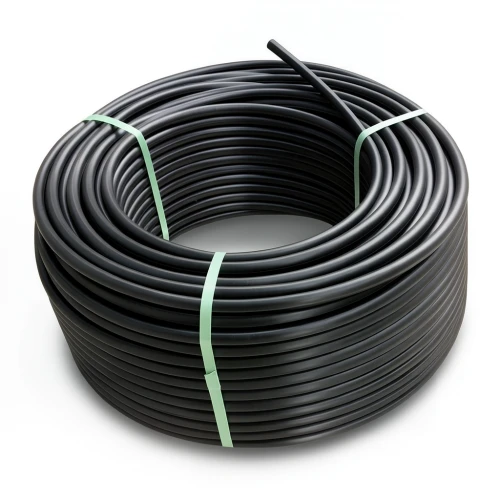

HDPE Coil Pipe PN 8 Bar PE 80 OD 75 mm SDR 17 Black

This HDPE coil pipe is manufactured from high-density polyethylene (PE 80), offering exceptional strength and durability for demanding water supply and irrigation networks. With a pressure rating of 8 bar and an outside diameter of 75 mm, it is engineered to perform reliably under Oman's harsh climatic conditions, including high temperatures and intense UV exposure.

The pipe features a standard dimension ratio (SDR 17) and a wall thickness of 4.5 mm, ensuring a balanced combination of flexibility and structural integrity. It meets ISO 4427-2 standards, guaranteeing consistent quality and performance. The material's inherent resistance to chemical corrosion makes it suitable for transporting potable water, agricultural water, and industrial fluids without degradation.

Available in convenient coils of 100 and 200 meters, this pipe simplifies handling and installation, reducing the need for joints and fittings. It is an excellent choice for projects across Oman, from Muscat's urban infrastructure to Salalah's agricultural developments and Sohar's industrial zones.

Key Features

• Material: High-density polyethylene (PE 80)
• Pressure rating: 8 bar
• Outside diameter: 75 mm
• Standard dimension ratio: SDR 17
• Wall thickness: 4.5 mm
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C = 1.25
• Color: Black
• Length: Coils of 100 m and 200 m
• Meets ISO 4427-2 standards
