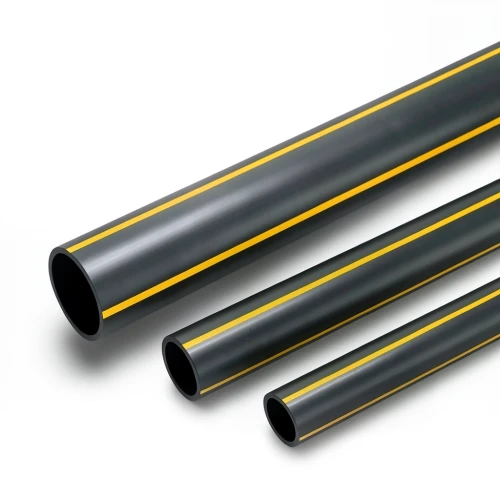

HDPE Pipe PN 4.8 Bar PE 80 OD 200 mm Thickness 11.4 mm Black with Yellow Stripes

This high-density polyethylene (HDPE) pipe, with an outside diameter of 200 mm and a wall thickness of 11.4 mm, is engineered for demanding applications in the Omani construction and industrial sectors. Its PE80 material grade provides excellent strength and durability, making it suitable for underground installations in Muscat, Salalah, and Sohar, where harsh desert conditions and high temperatures are common.

The pipe is rated at a pressure of 4.8 bar (SDR 17.6) and features a black body with yellow stripes, a standard color coding for gas distribution networks. Its design safety factor of C=2 ensures reliable performance under pressure, while the minimum required strength (MRS) of 8 MPa and design stress of 4 MPa guarantee long-term structural integrity.

Key Features

• Outside diameter: 200 mm
• Pressure rating: 4.8 bar (SDR 17.6)
• Material grade: PE 80
• Pipe thickness: 11.4 mm
• Color: Black with yellow stripes
• Material weight: 6.83 kg/m
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 4 MPa
• Design safety factor: C=2

Ideal for gas supply networks, water distribution, and industrial piping projects, this HDPE pipe offers excellent corrosion resistance and a long service life, even in the most challenging environments. Its lightweight nature simplifies handling and installation, reducing project timelines and costs across Oman.
