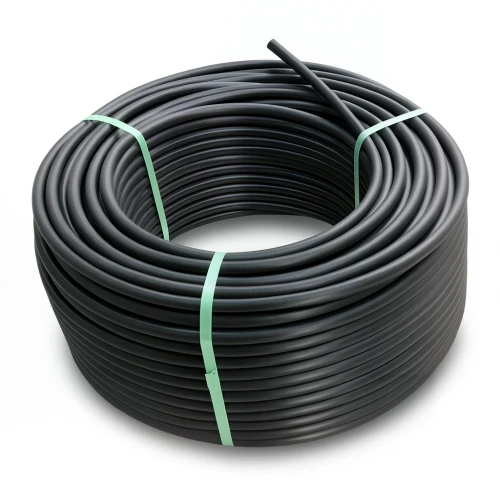

HDPE Plastic Coil Pipe PN 12.5 Bar PE 80 OD 125 mm SDR 11 Black

Description

High-density polyethylene coil pipe, PE 80, with a 12.5 bar pressure rating, 125 mm outer diameter, and SDR 11, ideal for water supply and sewage systems in Oman.

Product Description

This HDPE coil pipe, manufactured by Almona Factory to ISO 4427-2, delivers robust performance for water supply and sewage applications across Oman. Its high-density polyethylene (PE 80) construction ensures excellent resistance to corrosion, chemicals, and abrasion, making it a dependable choice for both potable water lines and wastewater systems.

With a pressure rating of 12.5 bar (PN 12.5) and an SDR 11 dimension ratio, this pipe is engineered to withstand the demands of municipal and industrial projects. The 125 mm outer diameter and 11.4 mm wall thickness provide structural strength, while the coil format (available in 100 or 200 meters) simplifies handling and installation, reducing the need for joints and fittings.

Key Features

Pressure rating: 12.5 bar (PN 12.5)
Material: PE 80 (high-density polyethylene)
Outside diameter: 125 mm
Standard dimension ratio: SDR 11
Wall thickness: 11.4 mm
Minimum required strength (MRS): 8 MPa
Design stress (σs): 6.4 MPa
Design safety factor: C = 1.25
Color: Black
Length: Available in 100 m and 200 m coils

Ideal for water supply networks, sewage lines, and industrial piping in Oman's challenging climate, this pipe offers long-term durability with minimal maintenance. Its flexibility and corrosion resistance make it suitable for both underground and above-ground installations, from Muscat to Salalah and beyond.
