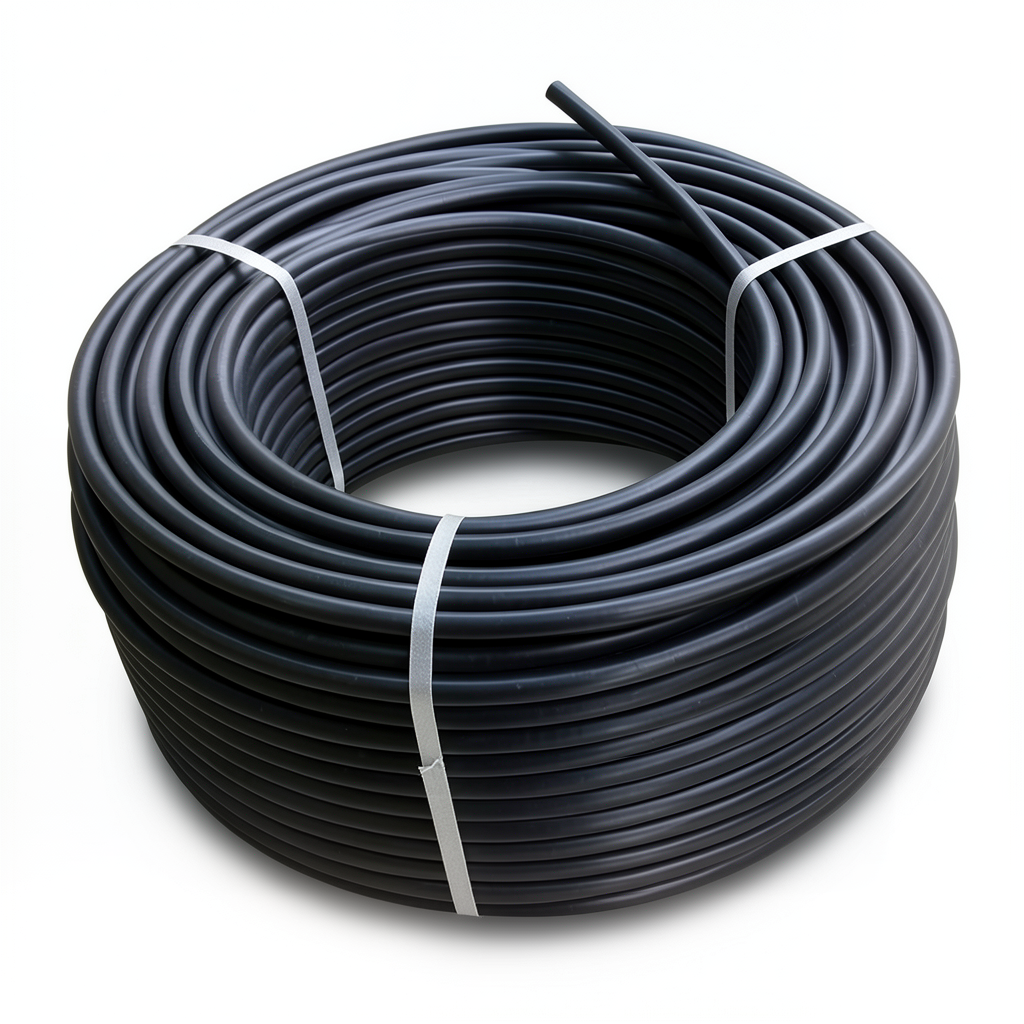

HDPE Plastic Coil Pipe PN 20 Bar PE 100 Size 110 mm SDR 9 Black

Description

High-density polyethylene coil pipe with a 110 mm outer diameter, PN 20 bar rating, and SDR 9, built for reliable water supply in Oman's demanding environments.

Product Description

This HDPE coil pipe is manufactured from premium PE 100 grade resin, delivering exceptional strength, flexibility, and long-term durability. With a 110 mm outside diameter and an SDR 9 rating, it is engineered to handle a working pressure of 20 bar (PN 20), making it an ideal choice for pressurized water transmission and distribution networks across Oman.

Key Features

Outside diameter: 110 mm
Wall thickness: 12.3 mm
Standard Dimensional Ratio (SDR): 9
Pressure rating: 20 bar (PN 20)
Pipe series (S): 4
Material grade: PE 100
Color: Black
Minimum Required Strength (MRS): 10 MPa
Design stress (σs): 8 MPa
Design safety factor: C = 1.25

Applications in Oman

This pipe is well-suited for potable water supply lines, irrigation systems, and infrastructure projects in Muscat, Salalah, and Sohar. Its corrosion resistance and ability to withstand high pressure make it a dependable choice for both above-ground and buried installations, even in Oman's harsh climatic conditions. The coil format simplifies handling and reduces the need for joints, speeding up installation on site.
