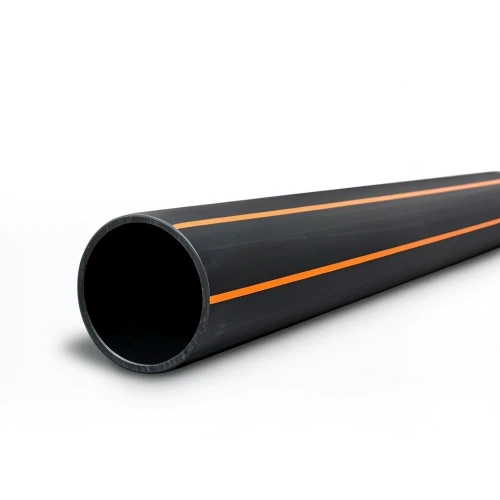

HDPE Plastic Pipe PN 6 Bar PE 100 OD 560 mm Thickness 31.9 mm Black with Orange Stripes

This HDPE plastic pipe is manufactured from premium high-density polyethylene (PE100), delivering outstanding resistance to corrosion, chemicals, and high-pressure conditions. With a pressure rating of 6 bar and an outer diameter of 560 mm, it is engineered to meet the rigorous demands of modern infrastructure projects across Oman, from Muscat to Salalah and Sohar.

The pipe features a robust wall thickness of 31.9 mm, providing exceptional structural integrity for long-term service in underground installations. Its black color with orange stripes ensures easy identification and compliance with industry standards for utility lines.

Key Features

• Material: High-density polyethylene (PE100)
• Pressure Rating: 6 bar
• Outer Diameter: 560 mm
• Wall Thickness: 31.9 mm
• Standard Dimension Ratio (SDR): 17.6
• Material Weight: 51.10 kg/m
• Minimum Required Strength (MRS): 10 MPa
• Design Stress (σs): 5 MPa
• Design Safety Factor: C=2

Applications in Oman

Ideal for gas distribution networks and water transmission systems, this pipe is suitable for both potable water supply and industrial applications. Its durability and chemical resistance make it a preferred choice for construction and building materials projects in Oman's challenging climate, including high-temperature environments and corrosive soil conditions.
