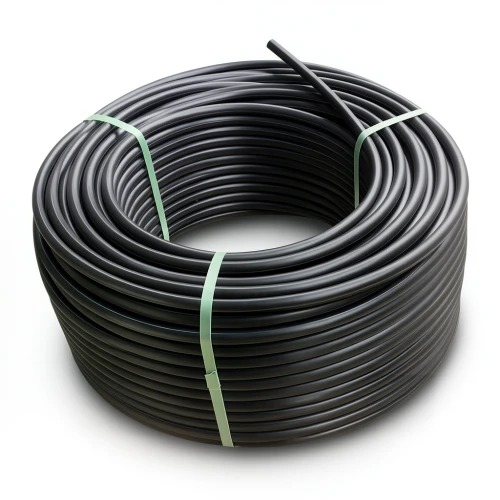

HDPE Polyethylene Plastic Coil Pipe 10 Bar Pressure PE 100, 63 mm Outer Diameter, SDR 17, Black

Engineered for the demanding conditions of the Sultanate of Oman, this HDPE coil pipe is manufactured from premium PE 100 grade high-density polyethylene. It combines exceptional strength with long-term durability, ensuring reliable service in water conveyance applications from Muscat to Salalah and beyond.

With a working pressure of 10 bar and a standard dimensional ratio (SDR) of 17, this pipe is well-suited for underground water networks, irrigation lines, and building supply systems. Its black color provides UV resistance for above-ground installations, while the flexible coil format simplifies handling and installation across varied terrains.

Key Features

• Outer diameter: 63 mm
• Wall thickness: 3.8 mm
• SDR 17 rating for consistent pressure performance
• Working pressure: 10 bar
• PE 100 material grade with MRS of 10 MPa
• Design stress (σs): 8 MPa with safety factor C=1.25
• Black color for UV protection

Ideal for water transportation networks in construction and infrastructure projects throughout Oman, this pipe meets the high standards expected in the region's building and industrial sectors.
