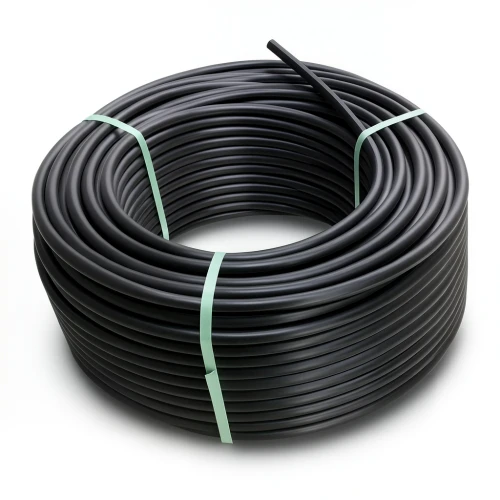

HDPE Polyethylene Plastic Coil Pipe Pressure 16 Bar PE100 Size 160 mm SDR 11 Black

This HDPE PE100 coil pipe is engineered for robust water transportation systems, offering superior strength and longevity. With a pressure rating of 16 bar and an outside diameter of 160 mm, it meets the demands of modern infrastructure projects in Oman, from Muscat to Salalah.

Manufactured from high-density polyethylene (PE100), the pipe delivers excellent resistance to corrosion, pressure, and temperature fluctuations, ensuring dependable service in harsh desert climates and coastal environments. Its SDR 11 rating and design safety factor of 1.25 provide reliable performance under high-pressure conditions.

Ideal for potable water distribution, irrigation, and industrial supply lines, this coil format simplifies handling and installation, reducing labor and time on site. Its black color offers UV protection for above-ground applications.

Key Specifications

• Outside diameter: 160 mm
• Wall thickness: 14.6 mm
• Standard Dimensional Ratio (SDR): 11
• Pressure rating: 16 bar
• Pipe Series (S): 5
• Material grade: PE100
• Color: Black
• Minimum Required Strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25

Whether for municipal water networks in Sohar or agricultural projects in the interior, this HDPE coil pipe delivers the durability and efficiency Omani builders and contractors rely on.
