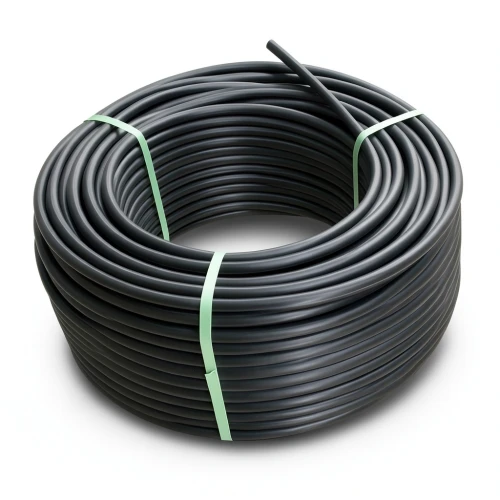

HDPE Coil Pipe Nominal Pressure 8 Bar PE 80 OD 50 mm SDR 17 Black

This HDPE coil pipe is engineered for robust and long-lasting water conveyance in Qatar's demanding environment. Manufactured from high-density polyethylene (PE 80), it offers superior resistance to corrosion, abrasion, and chemical attack, ensuring a maintenance-free service life. The pipe's 8-bar nominal pressure rating and 3 mm wall thickness make it suitable for a wide range of pressure applications, from municipal water distribution to industrial supply lines.

With a standard dimension ratio (SDR 17) and a design safety factor of C=1.25, this pipe delivers reliable performance under fluctuating pressures and ground movements, which is essential for infrastructure projects across Doha, Al Rayyan, and Al Wakrah. Its black color provides UV resistance, making it ideal for above-ground installations in Qatar's sunny climate.

Available in convenient coil lengths of 100 and 200 meters, this pipe simplifies handling, transportation, and installation, reducing the need for joints and fittings. Whether for new construction, renovation, or agricultural irrigation, this HDPE pipe offers a cost-effective and durable solution.

Key Features

• Nominal pressure: 8 bar
• Material grade: PE 80 (MRS 8 MPa)
• Outside diameter: 50 mm
• Wall thickness: 3 mm
• Standard Dimension Ratio: SDR 17
• Design stress: 6.4 MPa, safety factor C=1.25
• Black color for UV resistance
• Supplied in coils of 100 m or 200 m

Applications in Qatar

Ideal for potable water supply, irrigation networks, and industrial piping systems in residential, commercial, and infrastructure projects throughout Qatar.
