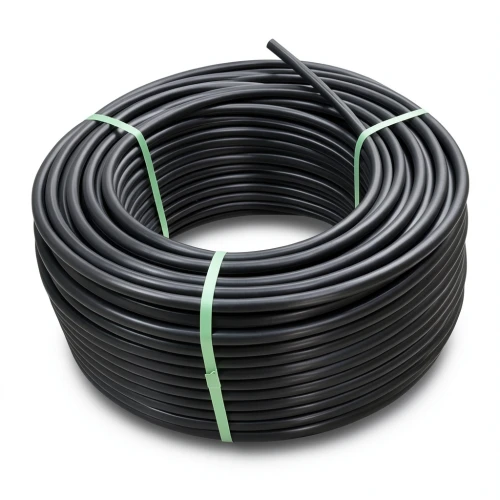

HDPE Coil Pipe PN 10 Bar PE 80 OD 75 mm SDR 13.6 Black

Description

High-density PE 80 coil pipe with 75 mm outer diameter and 10 bar pressure rating, ideal for durable water supply and industrial applications across Qatar.

Product Description

This HDPE coil pipe is engineered for reliable water transportation in Qatar's demanding climate. Manufactured from high-density polyethylene (PE 80), it offers exceptional strength, long-term durability, and inherent corrosion resistance, ensuring a maintenance-free service life even in harsh desert conditions.

Compliant with ISO 4427-2, this pipe delivers consistent performance at a working pressure of 10 bar. Its flexibility simplifies installation, especially in trenchless or congested areas common in Doha and Al Rayyan, while the coil format (100 or 200 meters) reduces joints and speeds up deployment.

Key Features

Outer diameter: 75 mm
Standard Dimension Ratio (SDR): 13.6
Material grade: PE 80
Pressure rating: 10 bar
Wall thickness: 5.6 mm
Minimum Required Strength (MRS): 8 MPa
Design stress (σs): 6.4 MPa
Design safety factor: C=1.25
Color: Black
Available in coils: 100 meters and 200 meters

Whether for municipal water networks, construction site supply lines, or industrial cooling systems, this HDPE pipe meets the rigorous standards expected in Qatar's infrastructure projects.
