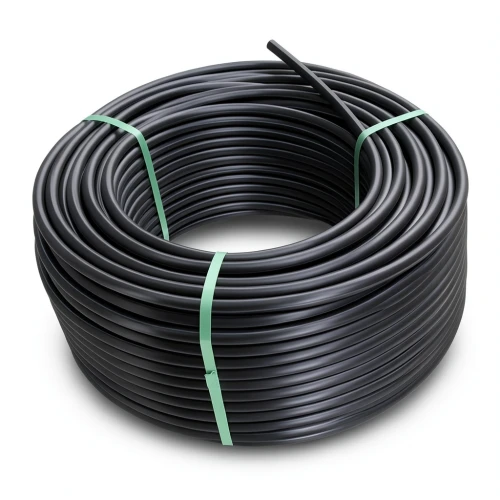

HDPE Coil Pipe PN 12.5 Bar PE 80 OD 20 mm SDR 11 Black

Description

HDPE Coil Pipe with PN 12.5 bar pressure rating, PE 80 material, and 20 mm outer diameter, ideal for water supply and industrial piping in Qatar.

Product Description

This HDPE Coil Pipe is engineered for reliable water transportation and industrial piping applications, meeting the demands of Qatar's construction and infrastructure projects. Manufactured from high-density polyethylene (PE 80), it offers outstanding durability, corrosion resistance, and the ability to withstand high pressures and temperature variations common in the region.

Key Features

Pressure rating: 12.5 bar (PN 12.5)
Material grade: PE 80
Outside diameter: 20 mm
Standard dimension ratio (SDR): 11
Wall thickness: 2 mm
Minimum Required Strength (MRS): 8 MPa
Design stress (σs): 6.4 MPa
Design safety factor: C=1.25
Color: Black
Available in coils of 100 meters and 200 meters length

Compliant with ISO 4427-2 standards, this pipe is suitable for potable water supply, irrigation systems, and industrial fluid handling. Its flexibility and coil format facilitate easy handling and installation, reducing the need for joints and fittings—a significant advantage for projects across Doha, Al Rayyan, and Al Wakrah. The pipe's resistance to corrosion and chemical attack ensures long service life even in demanding environments.
