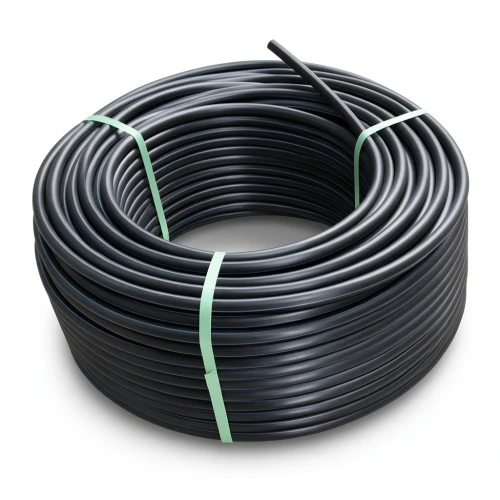

HDPE Coil Pipe Pressure 20 Bar PE100 16 mm OD SDR 9 Black

Description

This HDPE coil pipe, rated at 20 bar with PE100 grade and 16 mm outside diameter, offers durable and flexible water transportation for Qatari construction and infrastructure projects.

Product Description

Engineered for reliable performance in demanding water networks, this HDPE coil pipe combines high-density polyethylene (PE100) with a pressure rating of 20 bar, making it a robust choice for both potable water supply and irrigation systems across Qatar. Its flexibility simplifies installation in tight spaces, reducing the need for fittings and joints, which is especially valuable in urban developments in Doha and Al Rayyan.

The pipe's SDR 9 classification ensures a consistent wall thickness of 2.0 mm, providing excellent resistance to pressure surges and external loads. With a minimum required strength of 10 MPa and a design safety factor of 1.25, it delivers long-term durability even under harsh desert conditions, including high temperatures and UV exposure.

Key Features

Outside diameter: 16 mm
Wall thickness: 2.0 mm
Standard Dimensional Ratio (SDR): 9
Pressure rating: 20 bar
Material grade: PE100 (high-density polyethylene)
Black color for UV resistance
Minimum Required Strength (MRS): 10 MPa
Design stress (σs): 8 MPa
Design safety factor: C=1.25

Ideal for water transportation networks, this coil pipe is suitable for residential, commercial, and municipal projects in Qatar, offering a cost-effective and corrosion-resistant alternative to traditional metal piping.
