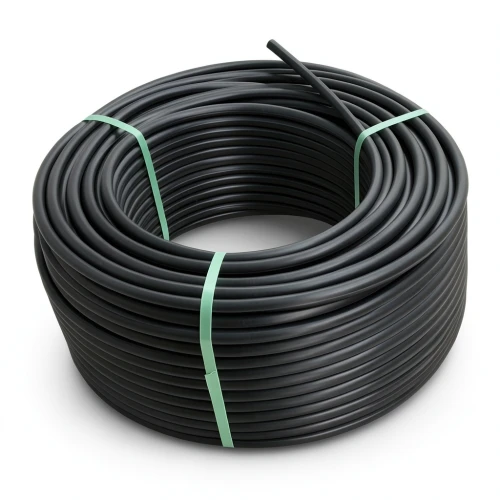

HDPE Plastic Coil Pipe Nominal Pressure 16 Bar PE 100 OD 75 mm SDR 11 Black

Description

High-density polyethylene (PE 100) coil pipe with a 75 mm outer diameter, SDR 11, and 16 bar nominal pressure, ideal for robust water supply systems in Qatar.

Product Description

This HDPE coil pipe is manufactured from premium PE 100 resin, delivering exceptional strength, durability, and resistance to corrosion and pressure. With an outer diameter of 75 mm and a standard dimensional ratio (SDR) of 11, it supports a nominal pressure of 16 bar, making it a reliable choice for demanding water transportation applications.

Key Features

Outer Diameter: 75 mm
Wall Thickness: 6.8 mm
Standard Dimensional Ratio (SDR): 11
Nominal Pressure: 16 bar
Pipe Series (S): 5
Material Grade: PE 100
Color: Black
Minimum Required Strength (MRS): 10 MPa
Design Stress (σs): 8 MPa
Design Safety Factor: C=1.25

Applications in Qatar

Engineered for the harsh climatic conditions of Qatar, this pipe is ideal for potable water distribution, irrigation networks, and infrastructure projects in Doha, Al Rayyan, and Al Wakrah. Its high-pressure rating and corrosion resistance ensure long-term performance in both above-ground and buried installations, meeting the rigorous standards of the Qatari construction sector.
