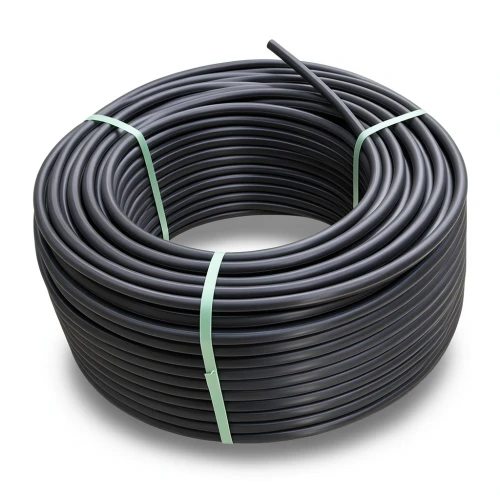

HDPE Plastic Coil Pipe Nominal Pressure 8 Bar PE 80 OD 40 mm SDR 17 Black

Description

High-quality HDPE coil pipe with PE 80 grade, 8 bar pressure rating, and 40 mm outer diameter, ideal for water supply systems in Qatar.

Product Description

This HDPE plastic coil pipe is engineered for reliable water transportation in Qatar's demanding environment. Manufactured to ISO 4427-2 standards, it combines high-density polyethylene (PE 80) with a robust SDR 17 design, ensuring long-lasting performance in both potable water and irrigation systems.

Key Features

Outside diameter: 40 mm
Standard dimension ratio (SDR): 17
Material grade: PE 80
Nominal pressure: 8 bar
Wall thickness: 2.4 mm
Minimum Required Strength (MRS): 8 MPa
Design stress (σs): 6.4 MPa
Design safety factor: C=1.25
Color: Black
Available in coils of 100 and 200 meters

Applications in Qatar

Ideal for municipal water networks, construction site water supply, and agricultural irrigation across Doha, Al Rayyan, and Al Wakrah. The coil format simplifies handling and installation, reducing labor costs and time on site. Its corrosion resistance and durability make it a preferred choice for both temporary and permanent installations.
