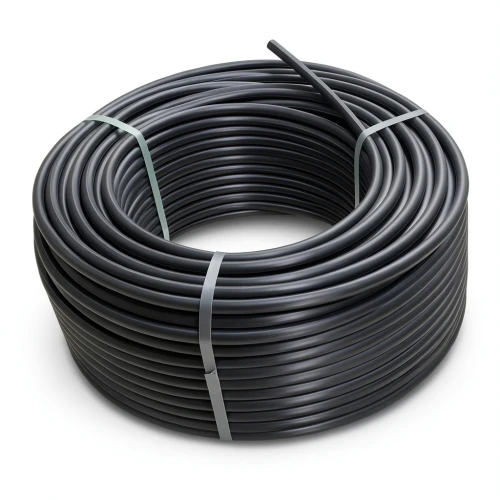

HDPE Plastic Coil Pipe Nominal Pressure 8 Bar PE 80 OD 90 mm SDR 17 Black

Description

High-density polyethylene coil pipe with 8 bar pressure rating, PE 80 grade, and 90 mm outer diameter, ideal for water supply and irrigation in Qatar's construction sector.

Product Description

This HDPE coil pipe from Almona Factory is engineered for demanding water conveyance applications. Manufactured from high-density polyethylene (PE 80), it delivers exceptional strength, corrosion resistance, and long-term durability, making it a dependable component in construction and infrastructure projects across Qatar.

Designed to meet ISO 4427-2 standards, this pipe ensures reliable performance in water supply, irrigation, and drainage systems. Its 8 bar nominal pressure rating and SDR 17 dimension ratio provide a robust solution for both above-ground and buried installations, withstanding the harsh desert climate and soil conditions common in Doha, Al Rayyan, and Al Wakrah.

Key Features

Nominal pressure: 8 bar
Material grade: PE 80
Outer diameter (OD): 90 mm
Standard dimension ratio (SDR): 17
Wall thickness: 5.4 mm
Minimum Required Strength (MRS): 8 MPa
Design stress (σs): 6.4 MPa
Design safety factor: C = 1.25
Color: Black
Available in coils of 100 and 200 meters

Ideal for contractors and suppliers in Qatar, this pipe offers easy handling and installation, reducing labor costs and project timelines. Its flexibility allows for continuous lengths, minimizing joints and potential leak points.
