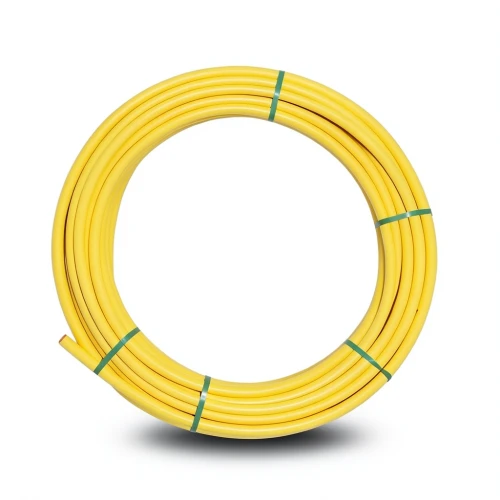

HDPE Plastic Coil Pipe PN 4.8 Bar PE 80 OD 16 mm Thickness 2.3 mm Yellow

Description

This HDPE coil pipe, made from PE 80 grade, offers a 4.8 bar pressure rating and a 16 mm outside diameter, ideal for gas and fuel supply networks in Qatar.

Product Description

This HDPE coil pipe is manufactured from high-density polyethylene (PE 80), delivering robust strength, long-term durability, and excellent corrosion resistance. Engineered for demanding applications, it is particularly suited for gas and fuel supply networks, as well as various building and infrastructure projects across Qatar, including Doha, Al Rayyan, and Al Wakrah.

The pipe's design incorporates a minimum required strength (MRS) of 10 MPa and a design safety factor of C=2, ensuring reliable performance under pressure. With a standard dimension ratio (SDR) of 17.6, this pipe offers a balanced combination of wall thickness and flow capacity.

Key Features

Material grade: PE 80 (high-density polyethylene)
Outside diameter: 16 mm
Wall thickness: 2.3 mm
Pressure rating: 4.8 bar
Material weight: 0.10 kg/m
Design stress (σs): 5 MPa
Standard dimension ratio (SDR): 17.6
Color: Yellow for easy identification

This pipe is suitable for buried or above-ground installations, and its coil format facilitates easy handling and transportation on Qatari job sites. Its resistance to corrosion and chemical agents makes it a dependable choice for long-term service in the local climate.
