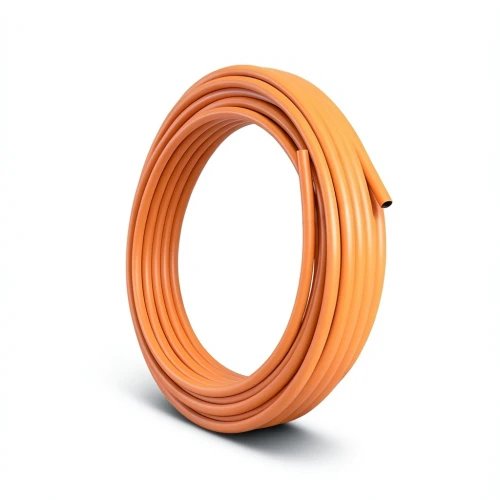

HDPE Plastic Coil Pipe PN 6 Bar PE 100, 25 mm OD, 2.3 mm Thickness, Orange

This HDPE coil pipe is a dependable choice for gas supply and construction networks across Qatar. Manufactured from high-density polyethylene (PE 100), it delivers robust performance in demanding conditions, including the extreme heat and humidity common in Doha and other Qatari cities.

Engineered with a 25 mm outside diameter and 2.3 mm wall thickness, this pipe offers a standard dimension ratio (SDR) of 17.6 and a pressure rating of 6 bar. Its PE 100 grade ensures high strength, excellent resistance to corrosion and chemicals, and long-term durability, making it suitable for underground and above-ground installations.

Compliant with ISO 4437, this pipe is designed for reliable gas distribution and construction applications. Its orange color provides easy identification in utility networks, while the coil format simplifies handling and installation, saving time on projects in Al Rayyan, Al Wakrah, and beyond.

Key Features

• Outside diameter: 25 mm
• Wall thickness: 2.3 mm
• Pressure rating: 6 bar
• Material: PE 100 (high-density polyethylene)
• Standard dimension ratio (SDR): 17.6
• Material weight: 0.17 kg/m
• Minimum Required Strength (MRS): 10 MPa
• Design stress (σs): 5 MPa
• Design safety factor: C=2
• Color: Orange
